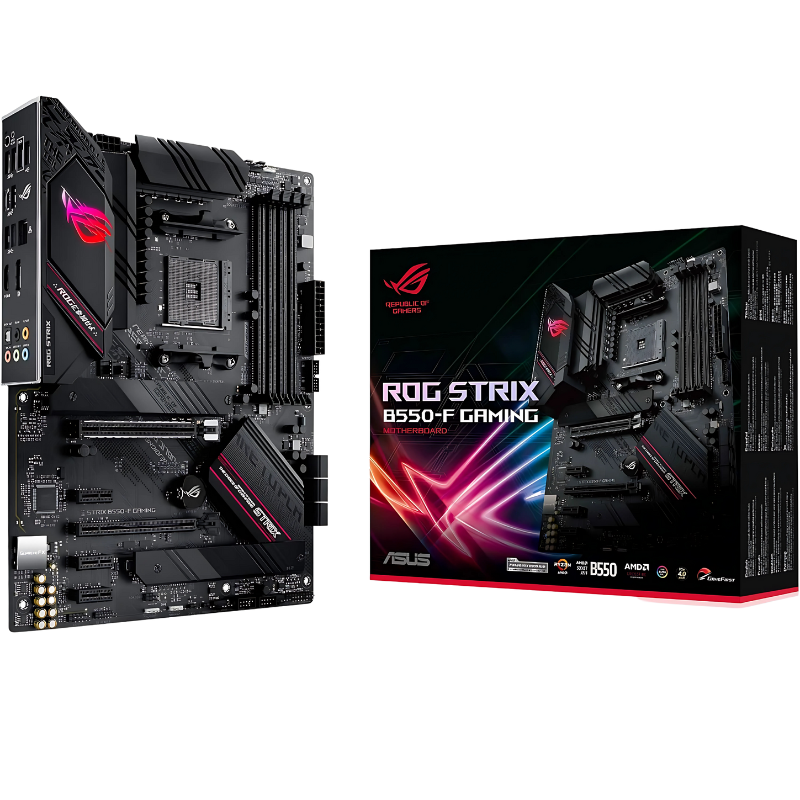

ASUS ROG Strix B550-F Gaming Motherboard, AMD AM4, DDR4, PCIe 4.0, ATX, LAN 2.5GbE, USB 3.2, Aura Sync

The ASUS ROG Strix B550-F Gaming Motherboard delivers performance and stability for systems with AMD Ryzen 5000, 4000 G, and 3000 series processors.
With support for the PCIe 4.0 standard, high-speed DDR4 memory and two M.2 slots with heatsinks, it provides speed and efficiency for gaming and content creation.
Includes Intel 2.5GbE networking, high-quality audio and customizable Aura Sync RGB lighting, plus USB 3.2 Gen 2 ports for fast data transfer.

---

Technical sheet

Brand: ASUS
Series: ROG Strix B550-F Gaming
Model: ROG STRIX B550-F GAMING
Format: ATX
Socket: AMD AM4
Chipset: AMD B550
CPU compatibility: AMD Ryzen 5000, 4000 G, and 3000 series (except Ryzen 3 3200G and Ryzen 5 3400G)
Memory: DDR4, up to 128 GB, 4 DIMM slots, Dual Channel support, up to 5100 MHz (OC)
PCIe Expansion:

1x PCIe 4.0 x16 (SafeSlot)

1x PCIe 3.0 x16 (x4 mode)

3x PCIe 3.0 x1
Storage:

2x M.2 (1x PCIe 4.0 / 1x PCIe 3.0) with heatsinks

6x SATA 6 Gb/s
Network: Intel 2.5GbE LAN
USB ports:

Rear: USB 3.2 Gen 2 Type-A, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0

Front: USB 3.2 Gen 1, USB 2.0
Audio: SupremeFX S1220A, 7.1 channels HD
Lighting: Aura Sync RGB
Cooling: Heatsinks for VRM and M.2
Dimensions: 30.5 x 24.4 cm (ATX)
Warranty: As per manufacturer
